Kursk - Lavochkin La-5

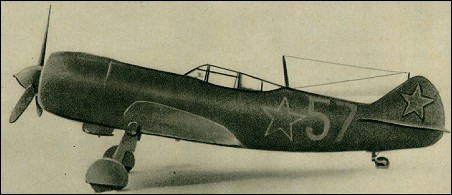

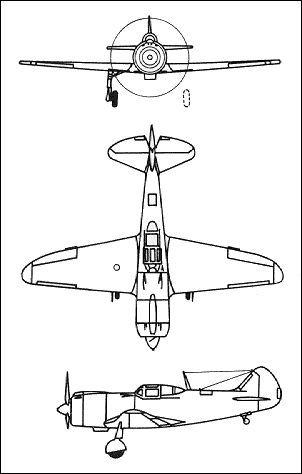

Lavochkin La-5FN Fighter
Year - 1943 Crew - 1 Engines - 1 1,850hp Shvetsov ASh-82FN
Span (m) Length (m) Height (m) Wing Area (m2)
9.8 8.6 2.54 17.5
Weight (Kg) Max Weight (Kg) Speed (Km/h) Ceiling (m) Range (Km)
2,800 3,360 648 9,500 775
Armaments:
2 20mm Cannon, 2 100Kg Bombs
After designing the LaGG-1, the three designers split. It soon became obvious that the only cure for the shortcomings of the LaGG-3 was a new, more powerful engine, and that the best alternative was the M-82 radial. Lavochkin managed to modify the LaGG-3 to accept this engine, despite the lack of official support. The La-5 entered service in 1942. In its developed La-5FN version it was superior to the German fighters at low and medium altitudes. Its disadvantages were primitive equipment, a bounce-inducing undercarriage, and in the early stages very poor production quality. 9,920 were built.

Images:
