Kursk - Junkers JU-88

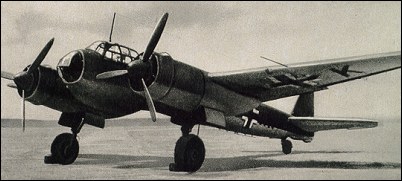

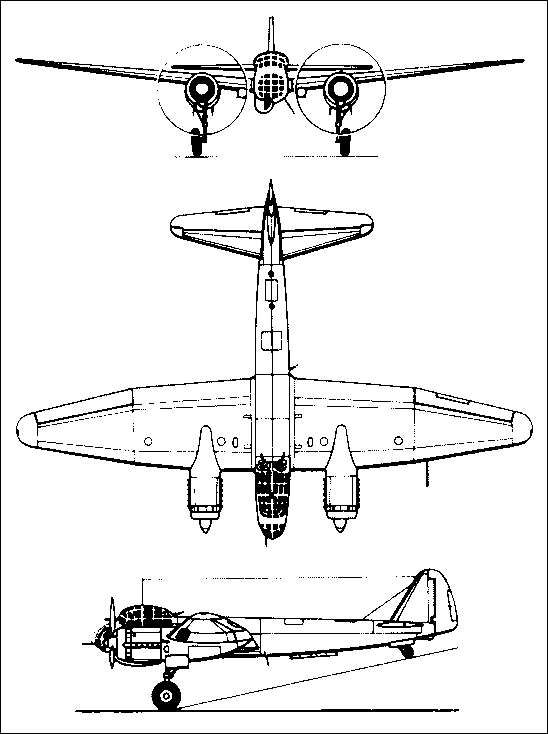

Junkers JU-88A-4 Bomber
Year - 1939 Crew - 4 Engines - 2 1,007kW Junkers Jumo 211-J1
Span (m) Length (m) Height (m) Wing Area (m2)
20 14.4 4.85 54.5
Weight (Kg) Max Weight (Kg) Speed (Km/h) Ceiling (m) Range (Km)
9,860 14,000 470 8,200 2,730
Armaments:
6 7.92mm MG; 2,000Kg Bomb load
The Ju 88 was one of the most versatile aircraft of WWII. It began its career as a fast (dive-)bomber and reconnaissance aircraft, and later was used also as torpedo-bomber, night-fighter, heavy day fighter and anti-tank aircraft. The first fighter conversions of the Ju 88 were very similar to the bomber versions, with only modifications to the nose and a gondola under the forward fuselage to accommodate radar and guns; the later Ju 88G was a specialised fighter with the tail of the Ju 188. The aircraft remained a formidable opponent throughout WWII. 10774 built, of which no less than 104 prototypes and experimental versions.

Images:
