Kursk - Junkers JU-87

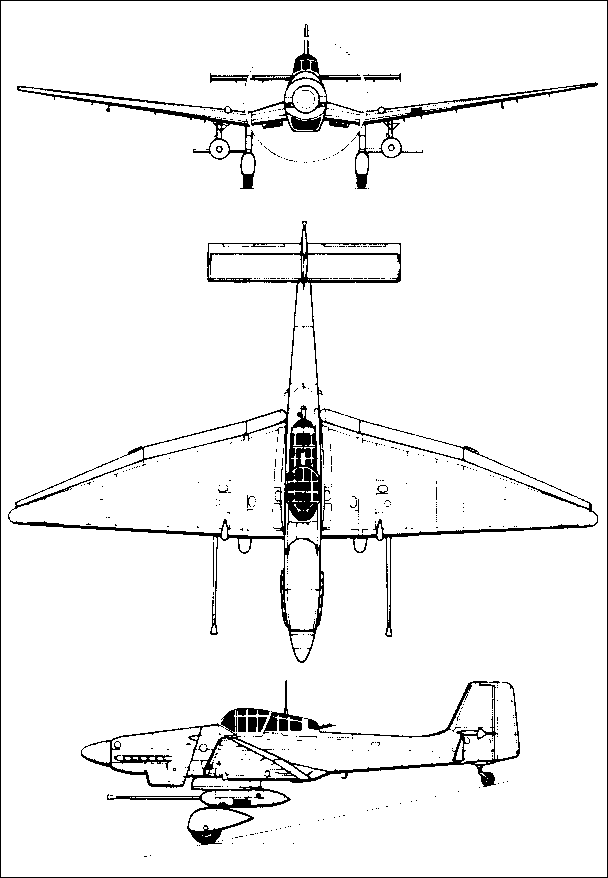

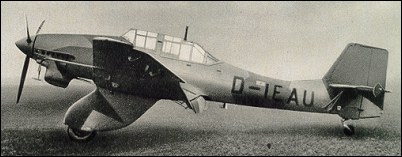

Junkers JU-87B-1 [G in brackets] Dive bomber [Anti-tank]
Year - 1938 [1942] Crew - 2 Engines - 1 880kW Junkers Jumo 211Da [211J]
Span (m) Length (m) Height (m) Wing Area (m2)
15 11.5 3.9 33.69
Weight (Kg) Max Weight (Kg) Speed (Km/h) Ceiling (m) Range (Km)
[4,400] [6,600] 385 [314] 8,000 600 [320]
Armaments:
3 7.92mm MG; 1,000Kg Bomb load [2 37mm FlaK 18 Cannon; 1 7.92mm MG]

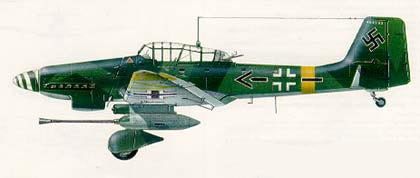

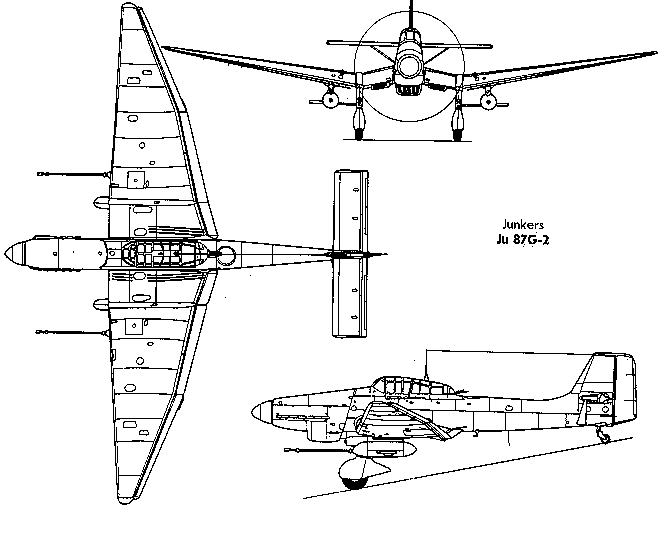

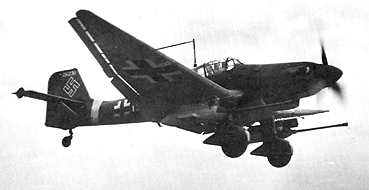

'Stuka' or 'Sturzkampfflugzeug' was the general German terminology for dive-bombers, but the Ju 87 with its inverted gull wing, and fixed-undercarriage was the most famous and feared of all. The Ju 87 was ugly, sturdy, accurate, but very vulnerable to enemy fighters; its use demanded air superiority. But its effectiveness in destroying fortifications or ships, or just scaring people, was undoubted. On the eastern front the last Ju 87 versions were employed as anti-tank aircraft with under-wing 37mm guns. Over 5700 built.

Images:
