Kursk - Junkers JU-52

Junkers JU-52/3m g3e Transport
Year - 1933 Crew - 2-3 Engines - 3 540kW BMW 132A-3
Span (m) Length (m) Height (m) Wing Area (m2)
29.25 18.9 5.55 110.5
Weight (Kg) Max Weight (Kg) Speed (Km/h) Ceiling (m) Range (Km)
5,720 10,500 275 5,900 1,285
Armaments:
3 7.92mm MG

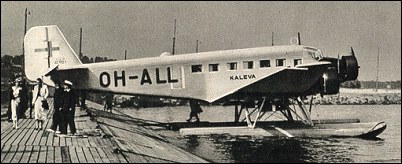

The angular Ju 52 with its corrugated skinning became a familiar sight in WWII --- it was the Luftwaffe's main transport aircraft. The Ju 52 first flew as a single-engined aircraft; it was soon redesigned to have three engines. Some pre-war aircraft had twin tail fins, but most had single fins. It was also used a bomber, and served as such in the Spanish civil war, but became far better known as a reliable and versatile transport aircraft. 4835 were built, but production did not compensate the losses. Carried 18 seats.

Images:
