Kursk - Heinkel HE-111

Heinkel HE-111H-16 Bomber
Year - 1943 Crew - 5 Engines - 2 990kW Junkers Jumo 211F-2
Span (m) Length (m) Height (m) Wing Area (m2)
22.6 16.4 4 86.5
Weight (Kg) Max Weight (Kg) Speed (Km/h) Ceiling (m) Range (Km)
8,860 14,000 405 8,500 2,060
Armaments:
1 20mm Cannon; 1 13mm MG; 5 7.92mm MG; 2000Kg bombload
Medium bomber, also used in small numbers as civilian transport. The early versions of the He 111 -- with a stepped cockpit -- flew in the Spanish civil war. During WWII the later developments of the He 111 with an unstepped, asymmetric, extensively glazed nose were used. The He 111 was a good medium bomber, but suffered severely from the Luftwaffe's lack of long-range escort fighters, and was kept in production long after it should have been replaced. Production ceased in 1944 after more than 7300 aircraft.

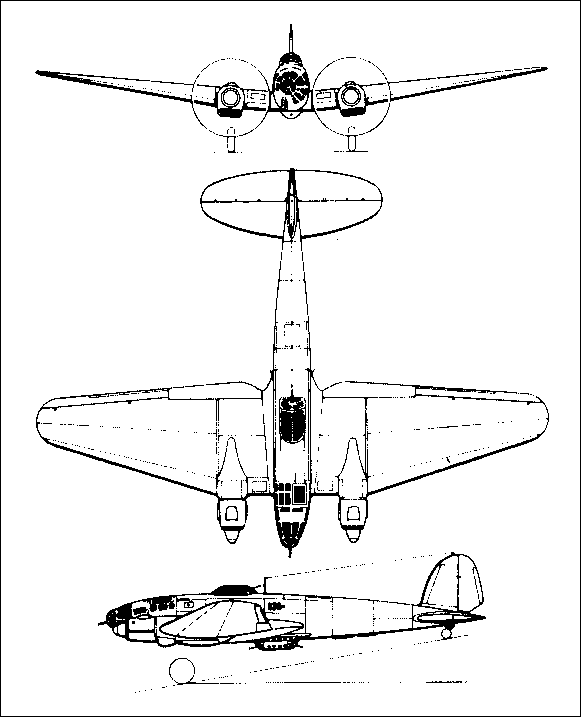

Images:








© Alan Wilson 1997, 1998, 1999 Last update: 13/11/99 04:03:27 PM GMT
