Page 40
PREPARATION FOR OPERATION

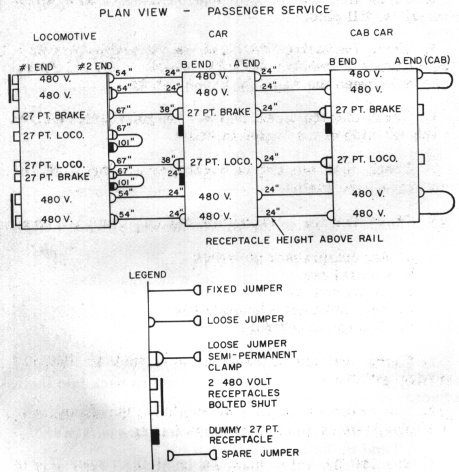

Figure 15. -- Locomotive and passenger car jumper cable arrangement.
Check the air compressor lubricating-oil supply. Proper level is indicated when the pointer registers on the green portion of the scale of the oil level indicator. The lower red scale indicates that oil must be added. The upper red scale indicates excessive oil.
Check the cooling water supply. Be sure that the water drain valves are closed.
