LOCOMOTIVE VALVE GEARS

The Control of Steam in a Railway Engine

A RAILWAY traveller about to start a long journey often strolls up to take a look at the engine, and if he is non-technical he usually regards the locomotive as a wonderful and complicated piece of mechanism. Wonderful it certainly is ; but complicated—certainly not. A school child may pause with awe if asked to spell" incomprehensibility" ; but, if the word is divided into two and three letter syllables, any child will spell it without hesitation. The locomotive is a parallel instance ; taken as a whole it appears formidable and complicated, yet any average person can easily understand it if the component parts are separately considered. Once the general principles are understood the various means of applying them will present no difficulty.

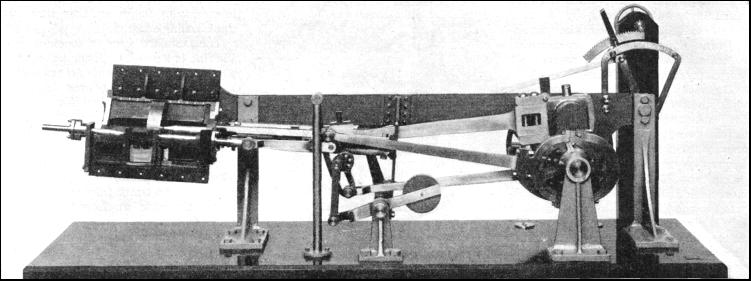

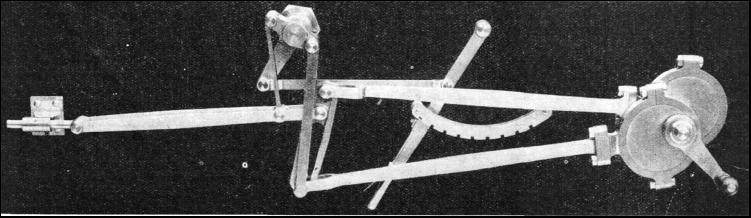

STEPHENSON VALVE GEAR, the joint invention of Williams and Howe in 1842, was first applied to locomotives by Robert Stephenson &. Co., and is still in use throughout the world. This picture shows a working demonstration model of the gear in the Science Museum, South Kensington.

With the exception of a few isolated designs which the railwaymen term "freaks," the driving wheels of every steam passenger and goods engine are turned by crankpins in the wheels themselves, or by a cranked axle, which in turn is operated by one end of a connecting rod, the other end being attached to a piston-rod. This piston-rod is moved back and forth by a piston, which is a disk moving up and down in a circular chamber closed at the ends and called a cylinder. There may be two, three, or four of these cylinders. Steam is admitted and exhausted from either end of the cylinder by a valve, which may be of the slide or piston type. The former is flat, working over ports cut in a flat face on the cylinder casting. The latter resembles a cotton-bobbin, and works in a small cylinder, the ports which admit steam to the working cylinder being formed in the walls.

To enable the ports to be opened and closed at the right time for the steam to enter either end of the cylinder, push the piston to the other end, and then escape into the air through passageways and blast-pipe, the valves are moved by a simple system of rods and links called a valve gear. This valve gear fulfils a double purpose. It not only allows for reversing the engine, but the driver can also set it to cut off steam at any part of the stroke of the piston. When a train is running it does not need much steam to keep it going, and a mere puff in each cylinder at the beginning of the stroke is often sufficient. There, in a nutshell, is the whole explanation of the "works" of the engine.

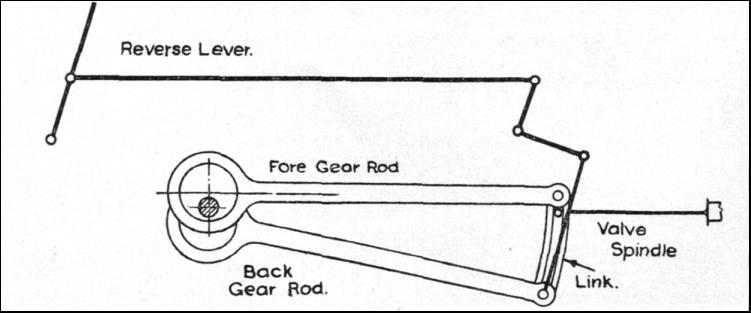

PULL FORWARD. This diagram shows the Stephenson link motion reversing gear, with the reverse lever set for running forward. In this position, the maximum movement is transmitted to the valve spindle.

Cylinders, pistons, piston-rods, and connecting rods are practically identical in every conventional engine, but there are several different forms of valve gear, each of which has its own particular advantages.

The very earliest valves were operated by a simple tappet gear. Two "fingers" were attached to the valve spindle, and another to the piston-rod at the outer end, so arranged that it caught against one of the valve-spindle fingers at either end of the stroke, and moved the valve the necessary distance. This was soon superseded by the eccentric, which is merely a flat pulley mounted on the axle ; but the hole for the axle is bored out of centre—hence the name. The farther out it is the more the eccentric will "wobble" or "tumble." Many enginemen still call them "tumblers" or "tumbling blocks." It is apparent that if a "strap" of metal is fixed on the eccentric pulley, and the strap is connected to the valve spindle by a suitable rod, the movement of the eccentric will cause the spindle to move to and fro.

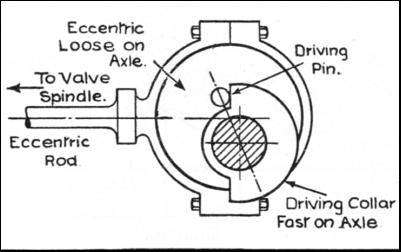

AN EARLY VALVE GEAR, in which a loose eccentric on the axle is driven by a collar and driving pin. The "Rocket's" gear worked on this principle.

Early locomotives, including the famous "Rocket," had a single eccentric for each valve, but it was not a fixture on the axle ; otherwise the engine could not have been reversed. At first sight, a non-technical or lay reader might wonder why a reversing gear is necessary. The piston moves up and down the cylinder, in exactly the same way, whichever way the engine runs. If the crank is on "dead centre"—that is, at the extreme end of the stroke—and the piston is up against one end of the cylinder, it must move away from that end, whether the engine goes ahead or backs. We must, however, consider what happens when the piston is half way along the stroke, and the crank on bottom centre, at its lowest position.

To move the engine ahead, steam must be admitted in front of the piston ; to move it backwards, steam must enter the cylinder behind it ; and to enable the valve to "keep its relationship," as one might say, with the piston at every part of the stroke, a different setting is necessary for either direction of movement of the engine.

On the "Rocket" and its contemporaries, this was accomplished by leaving the eccentric loose on the axle, and driving it by means of stops, one set for either way. The "Planet" type of engine, which succeeded the "Rocket," had inside cylinders, and the eccentrics were set close together in the middle of the driving axle, between the cranks. This enabled them to be combined on a sleeve, which was loose on the axle. A plate with a hole in it was fixed to the outside of each eccentric, and a collar on the axle outside of this carried a peg which fitted the hole.

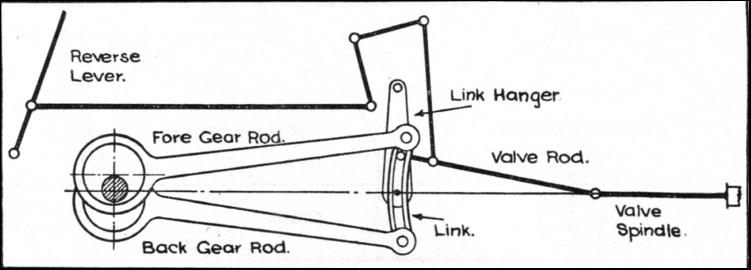

GOOCH'S GEAR. This reversing motion, designed by Daniel Gooch in 1847, had curved links supported by a hanger. The valve rod terminated in a die-block capable of being moved to either end of the link by means of the reverse lever and Roding.

One collar was set to drive the eccentrics for forward, and the other for backward motion, the sleeve carrying the eccentrics being capable of sideways movement, sufficient to allow either pin to engage, by a treadle on the footplate. The "ahead" and "astern" positions of the eccentrics were, of course, exactly opposite, and so the treadle could not be operated unless they were moved half a turn, or the engine moved to suit. The eccentric rods were not therefore directly connected to the valve spindles, but drove them by a hook and pin, which could be lifted out of engagement by a handle on the footplate. To reverse the engine the driver had to move the treadle half-way, lift the pins out of engagement, move the valve spindles by another lever, until the engine began to move backward, and force the treadle right home as the holes in the eccentric plates came opposite the pins in the crank collars—a truly cumbersome way of reversing. It was obvious that a quick reversing gear was essential, and so the single-lever-operated gear came into being.

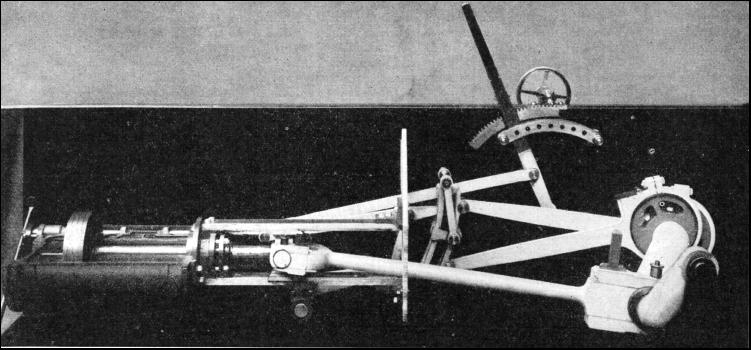

IN FORWARD GEAR. The Gooch valve motion set for running ahead. This fine model in the Science Museum, South Kensington, can be operated by the public and clearly shows the application and working principles of the Gooch gear.

Valves at that time had no lap ; that is, they just spanned the steam ports and no more ; the eccentric was therefore placed at right angles to the main crank. If the eccentric were 90 deg. ahead of the crank, the engine ran forward ; if 90 deg. behind it, the engine went backward. A Dundee engineer named Carmichael devised an arrangement requiring only one fixed eccentric. He connected the valve spindle to one end of a centrally-pivoted rocking lever. This had projecting pins at either end, and the eccentric rod had a double "gab," resembling two V-forks placed back to back, at the end. By means of a lever and rod, the eccentric rod could be made to engage with either pin at will ; so that the eccentric either moved the valve rod direct, when the engine went ahead, or moved it through the rocking lever in the opposite direction, when the engine, of course, went backwards. This arrangement answered perfectly for a time, but soon another trouble arose—the need for expansive working.

By this time locomotive engineers had found that it was wasteful and unnecessary to admit steam during the full piston stroke ; they thereupon lengthened the valves by adding a lap at either end, so that the port was closed before the piston had made its full travel. The opening time, however, still had to be the same—that is, with the crank on dead centre ; and therefore, the eccentric had to be moved on ahead of the 90 deg. setting, to an amount sufficient to allow the valve to open at the right time. This upset the Carmichael gear because, if the eccentric were advanced to give early opening when driving the valve direct, it would be correspondingly late when driving through the rocker.

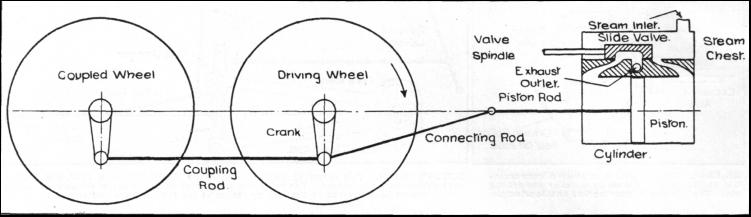

HOW THE LOCOMOTIVE WORKS. The above diagram illustrates in the simplest form how steam turns the wheels of a locomotive. The steam entering the inlet has pushed the piston from the front (right-hand) end of the cylinder to a point half-way along the bore. The rear end of the cylinder is open to the exhaust, the spent steam passing away by the cavity in the slide valve. Further movement of the piston would result in the valve moving to the right across the port faces in the steam chest, passing steam to the back end of the cylinder and opening the front end to the exhaust—ready for the return stroke.

The next step was to provide an eccentric for each direction of movement, and fix a single gab on the end of either rod, connecting up by suitable rods to a lever on the footplate, so that the driver could engage either gab at will, with a pin in the valve spindle. There were several variations of the gab motion. Some had the gabs pointing downwards towards the valve spindle ; some had them pointing upwards ; and some had one above and one below, so that they faced one another, and one engaged directly the other disconnected. The final arrangement was a double gab on the valve spindle itself, the ends of the two eccentric rods being connected by a bar.

While all these arrangements worked well as reversers pure and simple, the fixed cut-off point still remained ; but in 1842 a draughtsman named Williams, employed by Robert Stephenson & Co., conceived the idea of uniting the two eccentrics by means of a link, and connecting the valve rod to a die-block working in it, so that, by moving the rod opposite one or other of the eccentrics, the engine could be reversed. At the same time, if the rod were not exactly opposite, but a little towards the middle, the travel of the valve would be shortened, and expansive working obtained, due to the steam being cut off earlier. Williams's idea in its original form could not be carried out, as it was mechanically impossible to couple the eccentrics themselves by a link ; but "two heads are better than one," and a Stephenson pattern-maker named Howe made the idea a working pro position by shifting the link to the ends of the eccentric rods. Thus, the link motion came into being. This particular form survives to this day, and is still fitted to many modern locomotives. Although the joint invention of Williams and Howe, it is known as the "Stephenson" link motion, partly because the firm of Robert Stephenson first applied it, and partly to distinguish it from other forms of link motion, such as Gooch and Allan, which will be mentioned later.

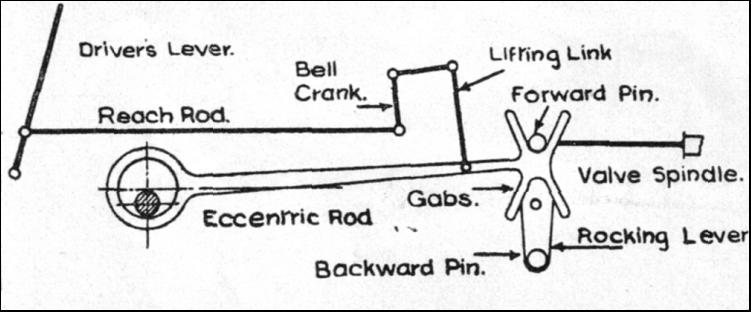

CARMICHAEL'S VALVE GEAR made use of a single eccentric and a pair of V-shaped gabs. These could be raised or lowered to engage with pins on a rocking lever attached to the valve spindle, so producing a backward or forward movement of the engine as required. No lap or lead could be given to the valve with this gear.

There are various forms of the Stephenson link motion itself, but all of them have the two eccentrics, one set for forward and one for backward gear, the ends being coupled to a curved slotted link. Links themselves are of several kinds. There is the regular "open" locomotive link, which has an open slot, and the fork-ended eccentric rods are coupled above and below it.

Then there is the "launch" link ; this also has the open slot, but the eccentric rods are coupled to lugs on the concave side of the link, opposite the ends of the slot. The "box" link has no open slot, but a curved groove machined out on one side of it, in which the die block works ; the eccentric rods, which are not forked, work on pins fixed in the plain side. One advantage of this type is that the pins line up with the die blocks in full forward or backward gear, so that the movement of the valve rod follows the movement of the eccentric rod exactly ; just the same, in fact, as though they were directly connected. This minimizes "lost motion" due to any wear or slackness in the parts, and also gives better valve movements when the engine is running notched up, as there are no "offset" connexions for which allowance would have to be made.

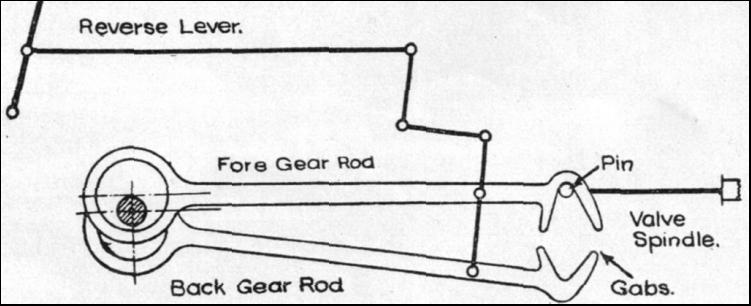

IMPROVED GAB GEAR, with two eccentrics, so arranged that lap and lead could be given to the valve to enable the steam in the cylinder to be used expansively. In the above diagram the gab of the forward eccentric is engaged with a pin on the valve spindle. On moving the reverse lever the forward gab is disengaged and the back gear rod comes into operation.

Connexion between die block and valve spindle is made in a variety of ways. Where the cylinders are inside the frames, with valves between, or with outside cylinders having valves inside the frame, direct connexion is possible. A casting known as a motion plate, or spectacle plate, is bolted across the frames a little way behind the cylinders. This carries two large bearing bushes, in which work extensions of the valve spindles. On the back ends of these are fitted large forked ends, each carrying a pin, on which the die block is mounted. The links work between the jaws of the forks. In other instances, the valve spindle extensions do not work in guides at all, but are suspended from swinging levers pivoted to the frames.

This is really the better plan, as it compensates for any slight misalignment of valve spindle and extension, and prevents undue friction in the motion and excessive wear on the glands.

This direct connexion is also used for inside cylinder valves, when the steam chest is above or below the cylinders but inclined towards the centre of the driving axle, instead of being parallel to the cylinder bores. A typical example of this was to be found in the old Stroudley "Gladstones" of the London, Brighton and South Coast Railway, where the piston rods passed over the leading coupled axle, and the valve spindles below it, the former inclining downward and the latter upward, the centre lines meeting at the middle of the crank axle. If, however, the valve spindles and piston rods are parallel, this is not possible, as the drive would then become what the railwaymen call "skew-whiff " ; so a rocking lever is introduced. One end of this is parallel with the centre line of the valve gear, and the other lines up with the valve spindle, to which it is connected by a short rod. The rocking lever itself is pivoted at the middle, and supported by a lug on the motion plate. The die block works on a pin, or in a fork, at the end of the lever.

Yet another arrangement is needed when the cylinders are outside and the valves on top of them. A short shaft with two pendulum levers is carried in a substantial bearing on top of the frame ; the outside lever is connected to the valve spindle by a short link. The die block works on a swinging arm pivoted to the inside of the frame, and movement is transmitted from this to the inner pendulum lever by an inclined coupling-rod. This lay-out of the Stephenson link motion is used largely on the Great Western locomotives, and gives every satisfaction. It enables parts of the gear to be removed without dismantling it all, saving much time in running-shed repairs. A similar arrangement was widely used in America when the Stephenson link motion was in vogue, before the advent of the radial gears.

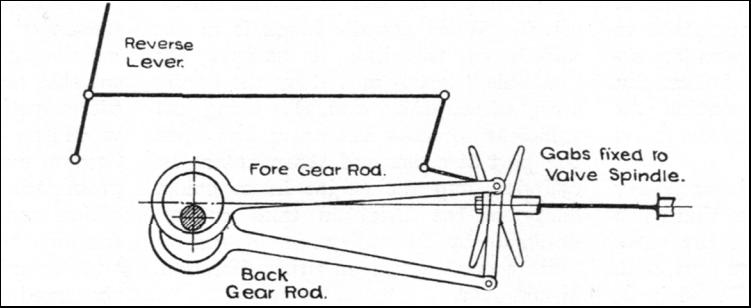

DOUBLE GABS on the valve spindle were used in the final development of the gab gear, and the two eccentric rods were connected by a bar as shown in this diagram. This gear did not permit of variation in the point at which steam was cut off from the cylinder.

The action of the gear is simplicity itself. Each eccentric is set so that when the crank is on dead centre the valve just begins to open the steam port, with the motion in "full gear" ; that is, with the eccentric rod lining up as near as possible with the valve-rod connexion, the die block being at the end of the link.

The locomotive invariably starts with the gear in this position. As soon as it gets under way the driver "notches up" by bringing the reverse lever a little towards the middle. This lifts the link ; and the die block, instead of being right at the end of the slot, is now a little way from it. It is obvious that there is less to-and-fro movement at this point of the link than at the ends. Therefore the valve travel is shortened, steam being cut off sooner in the stroke by the earlier closing of the port ; and as the die block approaches the middle of the link so the steam is cut off earlier as the travel of the valve becomes less and less.

Some engines will run in either direction, with the lever in the middle, and die blocks in the middle of the link ; the advance of the eccentrics, due to the valve lap, is responsible for this apparent paradox. As stated earlier, the eccentrics do not come exactly opposite, each one being advanced beyond the "right angle," to compensate for the lap and lead of the valve ; and as this advance is in the direction of motion the angles will be on the same side of the crank. Therefore, a line drawn through the centres of the eccentrics will not pass through the centre line of the crank axle, but a little to one side of it. As the two eccentrics are, of course, firmly fixed to the axle, it naturally follows that as the eccentrics revolve, this eccentric centre will sometimes be in front of and sometimes behind the true centre of the axle. The net result is that the whole link swings bodily back and forth, in addition to the movement at the ends given by the "wobbling" of the eccentrics themselves. When the die block is in the middle of the link it escapes the "wobble," but is moved by the bodily swing of the link ; and, this being just sufficient to move the valve and open the port at either end, steam enters the cylinders and the engine keeps going. Many of the Brighton tank engines designed by Stroudley would run at quite a good speed, in either direction, in mid-gear.

All motorists know the advantage of advancing the ignition as far as possible when a car is running at high speed. A Stephenson link motion locomotive, running at high speed with the gear notched well up and the die blocks almost in the centre of the links, presents a striking parallel. The ordinary type of motion, in which the fore-gear eccentric rod is connected to the top of the link and the back-gear rod to the bottom, "advances the ignition," as it were, as the die block approaches the centre of the link, and the bodily swing of the link mentioned above takes effect.

ALLAN'S STRAIGHT LINK MOTION, designed in 1855, made use of two eccentrics for forward and reverse gear. The reversing lever shifts the link, which is straight and not curved as in the Stephenson and Gooch gears, and at the same time moves the die block attached to the valve rod seen at the left of the picture.

The steam ports are opened a little sooner than they are when in full gear. Everything in this world takes time ; and it requires a certain amount of time for the steam to pass through the port and exert its full pressure on the piston head. When the engine is moving slowly, the port need not open so soon ; but when it is running quickly it is obvious that an early opening of the steam ports will help to ensure full pressure on the pistons at the beginning of the stroke, not only maintaining the speed, but also enabling an early cut-off to be made, thus utilizing the steam's expansive properties to the utmost.

Despite its advantages, the Stephenson link motion has fallen from favour during recent years ; this, however, is not due to any inherent disadvantages in the gear itself, but rather to mechanical drawbacks which make it unsuitable for very large engines.

The driving axle of a modern express passenger or heavy freight engine is massive, to say the least ; and eccentrics suitable for fitting on these axles, and carrying straps of sufficient size to drive a valve gear of corresponding dimensions, become unwieldy and present a new problem in the matter of adequate lubrication and the avoidance of excessive friction. A big eccentric running hot and beginning to bind forms a very effective band-brake.

Valve gears dispensing with eccentrics are now therefore used on all modern locomotives where the eccentrics, if used, would be "outsize." For the smaller types of locomotives, however, the gear continues to hold its own. It is, for example, extensively used on the Great Western for two-cylinder tender and tank engines, the general efficiency of which is above question.

The idea and principles of the Stephenson link motion have been applied to other forms of valve gear. Daniel Gooch, the first locomotive superintendent of the Great Western, devised a link motion in which the link itself was not raised or lowered for reversing, but swung from stationary hangers in what would be mid-position in the Stephenson motion. The eccentric rods were connected to the top and bottom of the link, but the link itself was placed the other way round, with the concave side towards the steam chest. The die block was fixed direct on the end of the valve rod, and this was moved by a lever and suitable rods.

Another variation derived from the Stephenson gear was the Allan straight link motion. Alexander Allan, of Crewe works, combined the ideas of the Stephenson and Gooch gears and used them with a straight link, which he claimed was easier to machine up than a curved one. The weighbar or reverse shaft had two arms for each set of gear ; one arm had a "drop" or lifting-link connected to the straight expansion link, and the other arm was similarly connected to the valve rod, so that when the driver operated his reversing lever the link would move up or down as required, and at the same time the valve rod would move in the opposite direction to meet it.

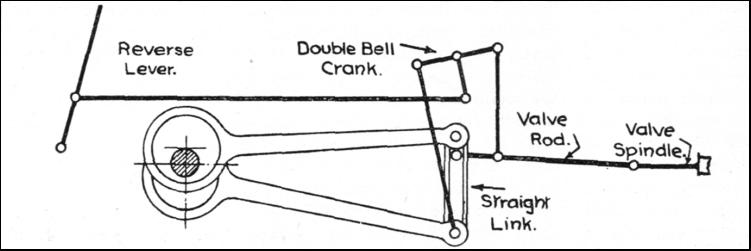

THE STRAIGHT LINK of Allan's valve gear, here shown set for forward running, is moved upwards to reverse the direction of travel, and at the same time the valve-rod die block is moved downwards in the link. This arrangement reduces the vertical height required to accommodate the gear on the locomotive.
