Page 38
GAGES AND MEASURING DEVICES

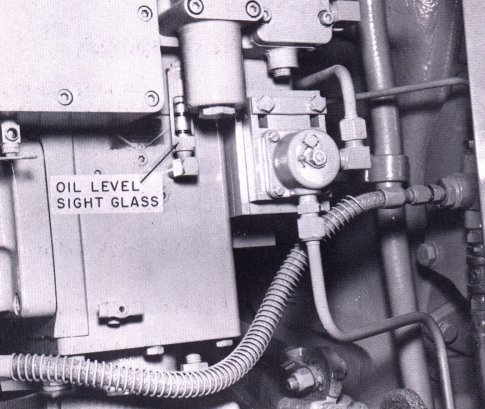

Figure 14. -- Engine governor lubrication.
Governor Oil-level Sight Glass - Located on the left side of the engine near the traction generator.. The oil level must be visible between marks on the sight glass when the engine is running. (See Figure 14)
