| re-engined M4A4 with FL-10 turret | |||
|---|---|---|---|
|
This Egyptian Sherman was based on
a Sherman M4A4 hull, which was re-engined with the GM 6-71 twin-diesel
engine from the Sherman M4A2. The turret was removed and replaced by the
FL-10 turret as fitted to the French AMX-13 light tank. The conversion
was designed and built in France.

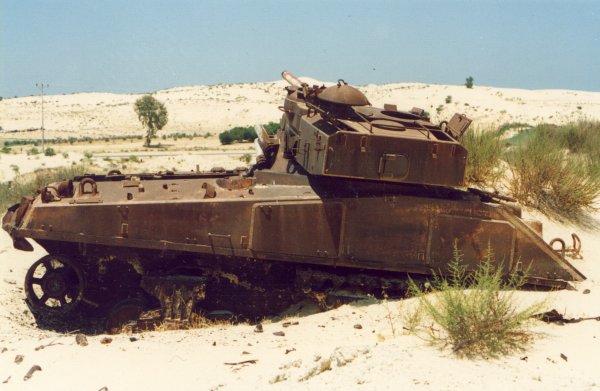

Keith Ross located this derelict example east of El Arish, Sinai, ARE. The Sherman has since been moved by the Egyptian government, and hopefully now serves as a monument somewhere. |
||
|

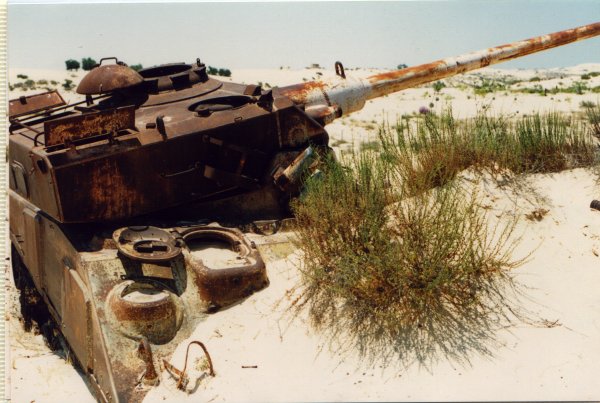

This view shows the FL-10 turret to good advantage. It is a two-man turret with auto-loader for the 75 mm gun. The auto-loader was reloaded through the two rectangular hatches in the turret top. | ||
|

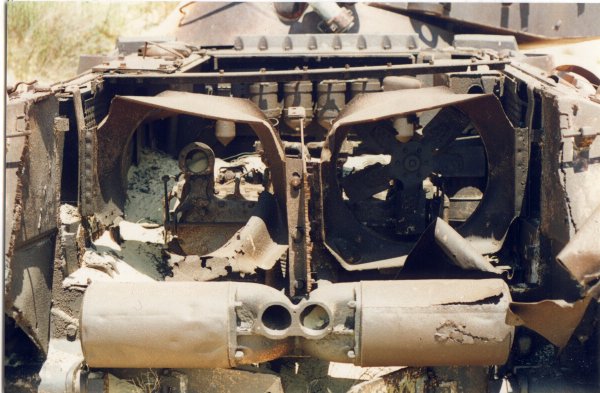

As the rear hull plate has been cut away one has a good view of the engine compartment: visible here are the diesel engine's exhaust and radiator fan housings. | ||
