ELECTRIC TRACTION

A Vital Development in the History of the Railway

THE scientific wonder of to-day is the commonplace of to-morrow. This is certainly true of electricity's application to our modern needs. The little electric models constructed by early inventors have developed into the electric expresses and giant electric freight engines, in use throughout the world at the present time.

The electric locomotive and electric motor coach may be regarded as natural developments that have followed steam traction. New conditions have set new standards in railway travel. This is exemplified in the rapid development of electric suburban train services for the new built-up areas spreading in all directions round large cities.

There can be no question that for comparatively short distances where stops are numerous, and fast and frequent trains are essential, the electric locomotive or electric motor coach has an enormous advantage over the steam engine. With their remarkable acceleration and efficiency in service, electric trains have solved the problem of transporting vast numbers of people over the great network of railway lines of the world's suburban systems.

The use of electricity for traction purposes has made possible the Tube railways of great cities, and has contributed in no small measure to the successful operation of the longest tunnels, such as those under the mountain ranges of North America and the continent of Europe.

The first experimental electric railway in the world is attributed to Thomas Davenport, a blacksmith of Vermont, U.S.A., who exhibited a small railway operated by a miniature electric motor in 1835. A Scotsman named Robert Davidson built in 1838 an electric locomotive that attained a speed of four miles an hour. In England a patent was granted in 1840 for the use of rails as conductors of electric current, and similar American patents were issued to Lilley and Colten in 1847.

In 1847, also. Professor Farmer operated an electric car carrying two passengers at Dover, New Hampshire. Between that year and 1858 numerous experiments were carried out in various parts of the world, in which small rail- and road-cars were operated by means of electric storage batteries. It was on April 29, 1851, that a small road-car, built by Professor Page of the Smithsonian Institute, attained a speed of nineteen miles an hour near Washington—to the utter destruction of the batteries.

In 1858, however, an unknown inventor discovered that the field magnets of a dynamo could be electrically energized by the rotation of its own armature. The next step forward in the development of electric traction was the invention, by Pacinotte, of the continuous current dynamo. This discovery was followed by the development of self-energizing field magnets by three Englishmen—Wheatstone, Varley, and Ladd, by the German engineer Siemens, and also by the American inventor. Professor Farmer.

This group of men, working quite independently, achieved the same result almost simultaneously in the years 1866-7. Three years later the French scientist. Gramme, produced the first practical direct current dynamo, with self-exciting field magnets and an armature wound with wire in the form of a continuous ring. Later the ring type of armature gave place to the drum armatures designed by Van Alteneck and Professor Rowland.

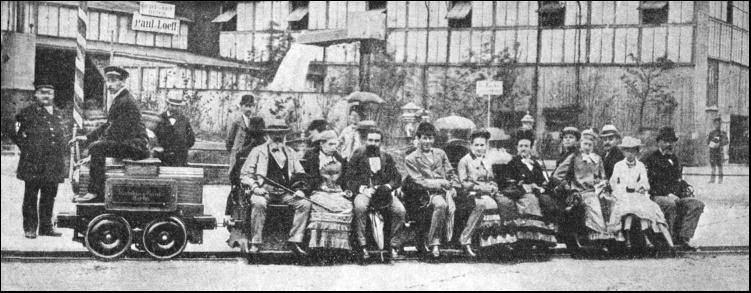

THE SIEMENS ELECTRIC RAILWAY laid down at the Berlin Exhibition of 1879. The short line was about 600 yards long, and current was drawn from a third rail between the track which acted as the return to the dynamo. The locomotive hauled a maximum of some thirty passengers at a speed of about four miles an hour. This historic illustration shows one of the earliest trainloads of passengers, seated upon three carriages.

The principle of the dynamo is, briefly, that if a wire be moved in the "field of force" of a magnet, an electric current will be "induced" or caused to flow in such wire. When the wires, wound on the drum armature, are made to revolve by mechanical means an electric current is produced. In non-technical language, then, it is only necessary to connect the terminals of a dynamo (with its armature revolving) to the terminals of an electric motor, to cause the armature of the latter to revolve. The motor armature can be coupled by gearing to the wheels of a rail-car. All that is needed to cause the car to move along the running rails is to supply current through an overhead wire or third "conductor rail." This wire or rail will serve as a "return" for the electric current to the dynamo in the power station.

A motor may be regarded as a dynamo "in reverse" ; it revolves when current is applied to its windings, and so gives out practically as much power as that used for operating the dynamo. It is said that this reversibility was discovered by chance. A workman connected a dynamo to a live circuit, and was astonished to see the stationary armature begin to revolve.

Between the years 1867 and 1879 the development of the dynamo and motor went on apace, but no experimental attempts appear to have been made to apply electric traction to railways, except for a small battery locomotive in the U.S.A. in 1875.

At the Berlin Exhibition of 1879 some 600 yards of track were laid, on which a little three-horse-power electric engine, designed by Werner von Siemens, hauled a load of some thirty passengers at a speed of four miles an hour. Current was supplied by a third rail laid between the track rails.

Siemens' demonstration led to other exhibitions at Brussels, Düsseldorf, and Frankfurt. Siemens and Halske then built a line to Lichterfelde, near Berlin, one and a half miles long. This line, which was opened for traffic with one electric car in 1881, was the first public electric railway in the world. The motor was carried on a frame below the body of the car between the axles. Power was transmitted from the armature of the motor to drums on the driving axles by means of steel cables. The car carried twenty-six passengers, and ran at thirty miles an hour on a current supply of 100 volts.

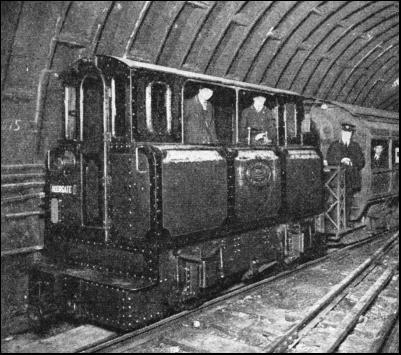

THE CITY AND SOUTH LONDON TUBE RAILWAY was opened in 1890, and marked the progress of electric traction. This line was reconstructed between 1922 and 1924. The tubes of the original line had a 10 ft. 2 in. diameter compared to the 11 ft. 8-1/4 in. diameter of to-day. The City and South London was the first Tube railway in the world.

In the British Isles, the Brighton Electric Railway began to operate in August, 1883. Two years later an electric line was opened in Ireland between Bessbrook and Newry. Another early electric railway was that between Portrush and the Giant's Causeway, in Northern Ireland.

Railway engineers in the United States were quick to appreciate the advantages offered by electricity. Many American cities adopted the new form of transport. At first electric traction was confined mainly to tramway work, but in 1883 the first electric locomotive for use on standard gauge railways made its appearance on the Mount Macgregor and Lake George Railroad in the State of New York. This electric locomotive was designed by Mr. L. Daft. In 1885 Mr. Daft built an electric engine that ran for several weeks on New York's elevated railway, after which it was rebuilt. The engine was again in service in 1888.

In Great Britain the opening of the City and South London "Tube" Railway, in 1890, marked an epoch in the development of electric traction and had far-reaching consequences throughout the world. This line not only gave an impetus to the use of electricity for railway work, but was also the forerunner of London's Underground railways, now the largest system of its kind.

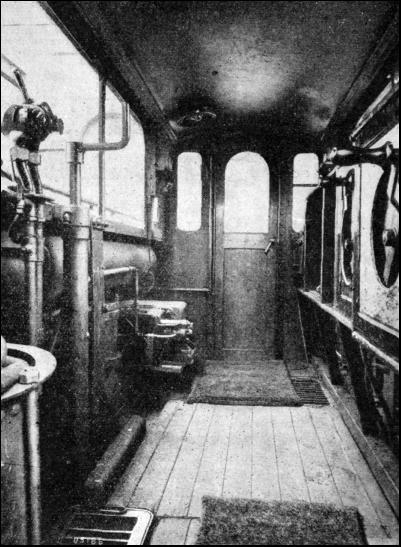

IN THE CAB of an early City and South London Railway's electric locomotive. These engines, running on four wheels, deriving power from a third rail, hauled forty-ton trains at an average speed of twelve miles an hour. The Westinghouse air brake was used, and a supply of compressed air was carried in two reservoirs.

The City and South London Railway was operated by electric locomotives— quite small machines which, however, continued in service for over thirty years. The line was reconstructed between 1922 and 1924, with standard tunnels, of 11 ft. 8-1/4 in. diameter. The cast iron tubes of the original line were of only 10 ft. 2 in. diameter. The old City and South London Railway now forms part of the great north-to-south line under London between Edgware in Middlesex, and Morden in Surrey, via the Bank.

The locomotives ran on four wheels, of 2 ft. 3 in. diameter, and weighed about 12 tons. The length was 14 ft. with a width of 6 ft. 8-1/2 in. and a height of 8 ft. 6 in. The wheelbase was 6 ft. The frames and axle bearings were placed outside the wheels. Each axle was driven by an independent motor and the armatures were built directly on the axles. The field magnets surrounding the armatures were supported partly by brackets bearing on the axles and partly by links connecting the magnet yokes to a cross beam on the frame of this early engine.

Each motor developed 50 h.p., giving a tractive effort of 3,000 lb. with an electric current of 226 amperes. The trains, weighing 40 tons, were hauled at an average speed of twelve miles an hour, with a maximum of twenty to twenty-five miles an hour.

An interesting feature of these early locomotives was the use of the Westinghouse air brake. No motor-driven air-compressor was fitted, as on modern electric trains, for working the brakes, but a supply of compressed air was carried in two reservoirs on the engine. These reservoirs were charged with air at 80 lb. pressure at the beginning of each journey, thus making provision for some thirty stops. A powerful hand-screw brake was also fitted in the driver's cab.

The permanent way comprised flat-footed rails, weighing 60 lb. per yard, spiked to sleepers, the ends of which rested on the cast iron lining of the tunnel.

The electrical conductor consisted of a light steel rail supported on glass insulators fixed to alternate sleepers. This conductor rail was set one inch below the level of the running rails, and wooden ramps were provided at points and crossings to carry the collectors over the rails, thus avoiding a short-circuit. The engine was provided with two sliding collectors, one at either end, so that the supply of current was continuous, despite the lifting of one collector by a crossing ramp.

The collectors were connected, through a safety fuse and main switch, to a rheostat switch for use on starting. Current at full pressure cannot be led direct to the motors ; it must be applied gradually through a rheostat or resistance. The current, after flowing through the motors, passes through the locomotive axle-boxes and wheels to the rails, and so returns to the generating station.

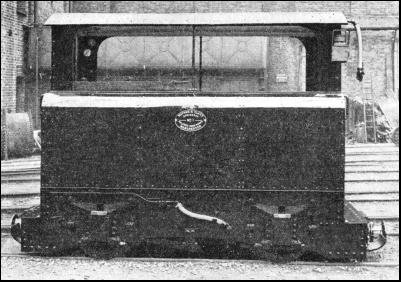

ELECTRIC LOCOMOTIVE No. 1 on the City and South London Railway. The engine had four wheels and weighed about 12 tons. It was 14 ft. long, 6 ft. 8-1/2 in. wide, and 8 ft. 6 in. in height. Each axle was driven by an independent motor. These motors each developed 50 h.p., giving a tractive effort of 3,000 lb.

In 1893 the Liverpool Overhead Railway was opened, and this, from its beginning, was operated by electricity. The employment of steam locomotives was precluded owing to the proximity of the line to the docks.

Two important United States lines—the New York, New Haven and Hartford, and the Baltimore and Ohio—opened sections for electric transport in 1894 and 1895 respectively.

In Switzerland the Burgdorf-Thun Railway—twenty-five miles long—was opened for electric traffic in 1896. Three years later the Chicago South Side elevated line also came into operation.

The beginning of the twentieth century saw great developments in electric traction throughout the world, with the opening of the Central London, Paris Metropolitan, and sections of the Paris-Orleans Railway.

Rapid strides were taken in electrification during the following years. Between 1901 and 1906 many lines in America, England, Germany and Italy were built for electric traction. In 1902 the electric Berlin elevated line was first opened to the public Many railways were electrified in the year 1907, notably that through the Simplon Tunnel, the New York Central suburban lines, and further sections of the New York, New Haven and Hartford Railroad. In the same year was opened the electric Hamburg-Blankensee Railway.

In 1909 the first electric suburban service of the former London, Brighton and South Coast Railway was inaugurated, with overhead collectors on the trains for the electric current. This system of current collection has now been superseded by the third rail, and the old London, Brighton and South Coast lines now form part of the Southern Electric system, the largest electrified suburban service in the world.

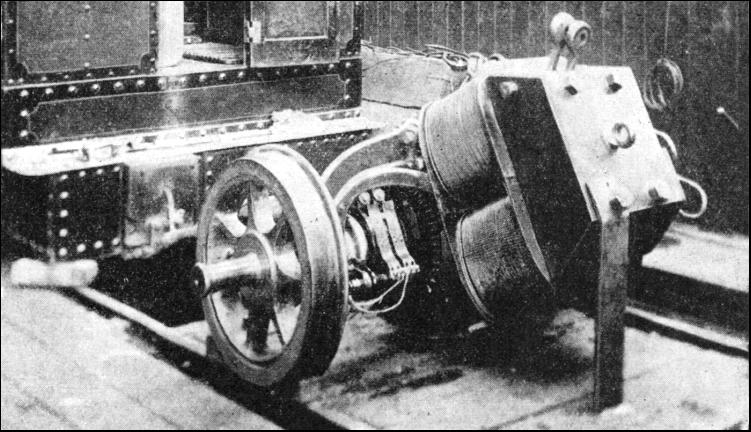

THE UNDERCARRIAGE of electric locomotive No. 1. The armatures—seen in the photograph above—were built directly on the axles. The field magnets surrounding the armatures, were supported by brackets bearing on the axles, and by links connecting the yokes to a cross beam of the locomotive frame.

Development of electric railways led to great improvements in design, not only in locomotives and coaches operated by electricity, but also in the generation and methods of distributing the electric current produced. Countries having great natural resources in the form of water power were quick to appreciate the advantages of electric traction.

In Switzerland, Germany, France and Italy huge power stations have been built at the feet of mountains, the pipes bringing unlimited water from the lakes and streams of the upper valleys to the great electrical generators far below.

Electric locomotives were put into service in 1914 for hauling heavy mineral trains on the Shildon-Newport section of what is now the London and North Eastern Railway. During the war of 1914-18 many electrification schemes were held in abeyance.

A notable exception, however, was the great progress made in railway electrification in Switzerland. That country, without coal of her own and unable to obtain adequate supplies from other countries, was compelled to turn to her natural resources in the form of water power. To-day, most of the Swiss railways are electrically operated from the great hydraulic power stations in the Alpine valleys.

Enormous strides have been made in the U.S.A. in the development of electric traction, not only for suburban services, but also in the successful working of long-distance main line trains by the employment of electric locomotives.

The longest stretch of main line yet electrified in America, at the time of writing, is on the Chicago, Milwaukee, St. Paul, and Pacific Railroad. The 441 miles between Harlowton (Montana) and Avery (Idaho), on the main line from Chicago to Seattle, are worked by some of the most powerful electric locomotives in the world.

The route runs at altitudes varying between 2,500-ft and 5,800-ft, and the gradients are particularly severe. One forty-miles ascent rises at 1 in 100, there is a ten and a half miles climb at 1 in 60, and another which is twenty-one miles in length at 1 in 50.

Electricity for this line is generated by water power, as in Europe. Owing to the "switchback" nature of the route the effect of "regenerative braking" is used to the best advantage. The regenerative system of braking makes use of the power developed by an electric train on a falling gradient to produce electric current (the driving motors serving as generators), which is returned to the power station. Thus the power that is usually lost in braking a train is turned to useful account and economies are effected in operation.

There is no rivalry between the electric locomotive and the steam engine. The steam locomotive is to be preferred for long-distance work where trains are infrequent. For suburban traffic, where rapid acceleration is essential and trains are run at the closest possible intervals, electricity saves both time and money.

No comparison can be made between steam and electricity on a question of power. The former is limited by the pressure of the boiler and the size and number of its cylinders and wheels. An electric locomotive can, within the limits of the motor windings, draw on the resources of a huge power house.

Many remarkable tests have been carried out to demonstrate the power superiority of the electric engine. A trial in the United States resulted in a 265 ton gearless electric locomotive pushing backwards a 278 ton steam locomotive of the "Mallet" type.

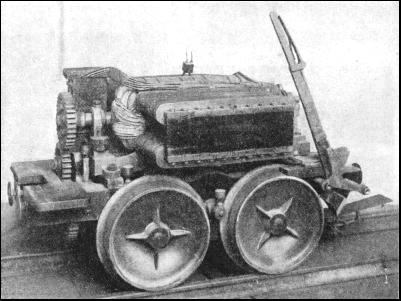

THE THREE-HORSE POWER electric locomotive built by Werner von Siemens for the Berlin Exhibition of 1879. The engine, which created a great sensation in its day, was mounted on a truck with the drive to the axle through spur gearing.
