BA-64

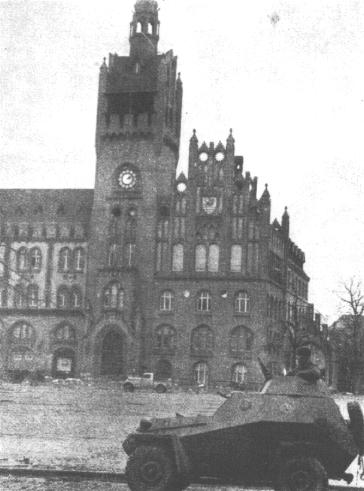

Soviet BA-64 in the town of Stolp in Eastern Pommerania, March 1945.

In 1941 the Grachev's design team at GAZ designed the BA-64 which was based on the GAZ-64 jeep. Limited production of the initial version was undertaken from late 1941 to early 1942. It had a coffin-style hull (resemblin that of the German SdKfz. 222) and was armed with single 7.62mm DT machine-gun fired from an open pulpit. A troop-carrying version was developed, the BA-64D (desantiy:raider) which could load 6 men, but no production was undertaken. In 1943, the improved GAZ-67B jeep entered production. Its armored car derative was the BA-64B which became the standard production model. This now had a small turret where the 7.62mm DT were fitted. In 1944, small numbers of BA-64s were armed with single 12.7mm DShK and these were known as BA-64DShK. Some units equipped with BA-64s rearmed some with 14.5mm PTRS AT-rifle or captured German 20mm cannon. The BASh-64 was a staff armored car version with several modifications in the rear for radio storage, map reading and so on. It was not produced in quantity. An experimental BA-64SKh were built with skis and a rear track assembly for travelling in deep snow. Two versions of the BA-64ZhD were also built by GAZ and the Vykunskiy factory. The BA-64 were often known as the "Bobik" by its crews, based on the diminutive form of its acronym. Total production of BA-64 (all variants) totalled almost 3.600 vehicles.

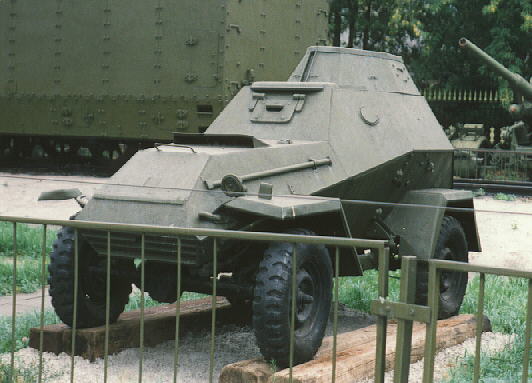

Preserved BA-64B "Bobik" at Central Army Museum Frunze, Moscow.
Photo provided by George Mellinger.


Specifications:
