VESUVIUS' Deck Plans

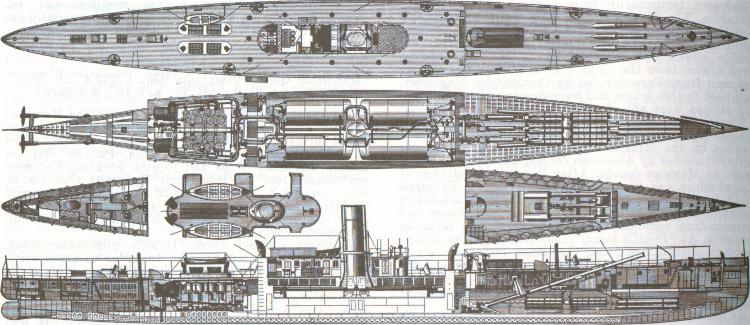

These plan show how the VESUVIUS
was laid out below decks. Her unique fixed gun arrangement can be clearly
seen on the ship section, below.
Mooney, James L., Dictionary of American Naval Fighting Ships,
Vol. VII (Washington DC: Government Printing Office, 1981.
