GAGES AND MEASURING DEVICES

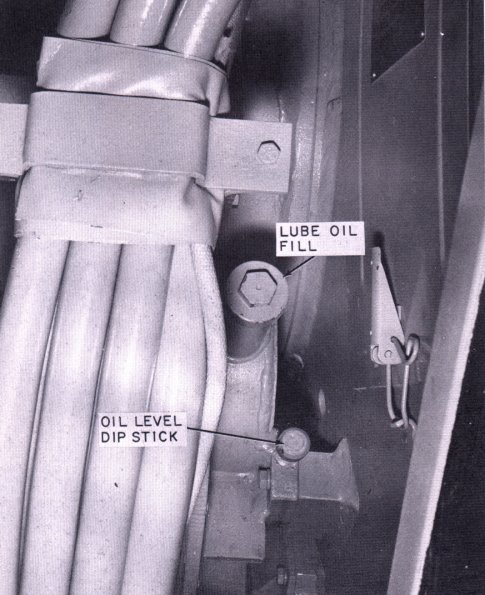

Figure 12. -- Traction alternator gear case lubrication.
Traction Alternator Gear Box - A dipstick marked EMPTY - ADD - FULL indicates oil level. The proper level is between ADD and FULL with the engine stopped. (See Fig. 12)
Fan-gear-unit Oil Level - Maintain oil level near the spill-over of the fill pipe. (See Fig 13)
